offline folder gluer stitcher

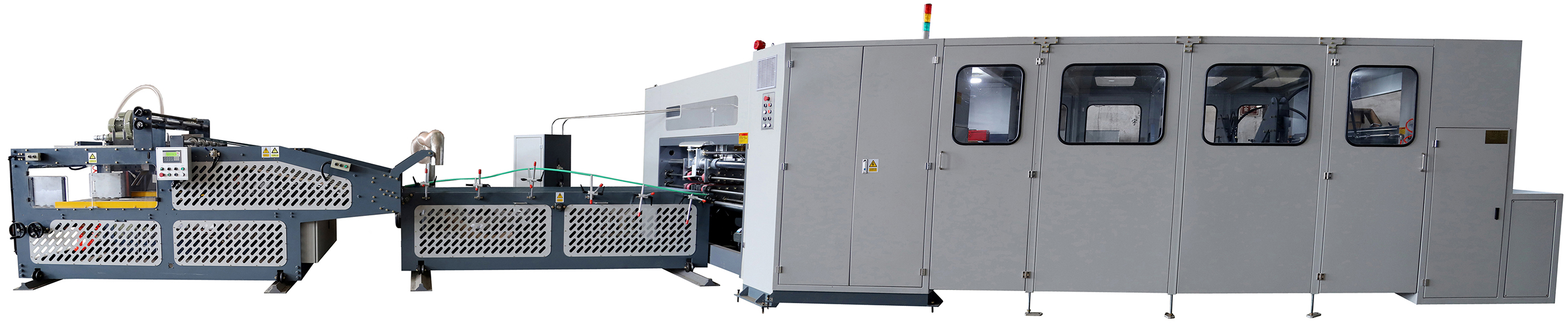

Automatic corrugated carton box folder gluer Stitcher, cardboard box folding gluing stitching machine mainly used in food corrugated carton box, fruit carton box, industry carton box and other various corrugated packaging application.It is with high speed folding gluing stitching production, PLC program system, intelligent controlling and order memory system application.
|
|
|||
|

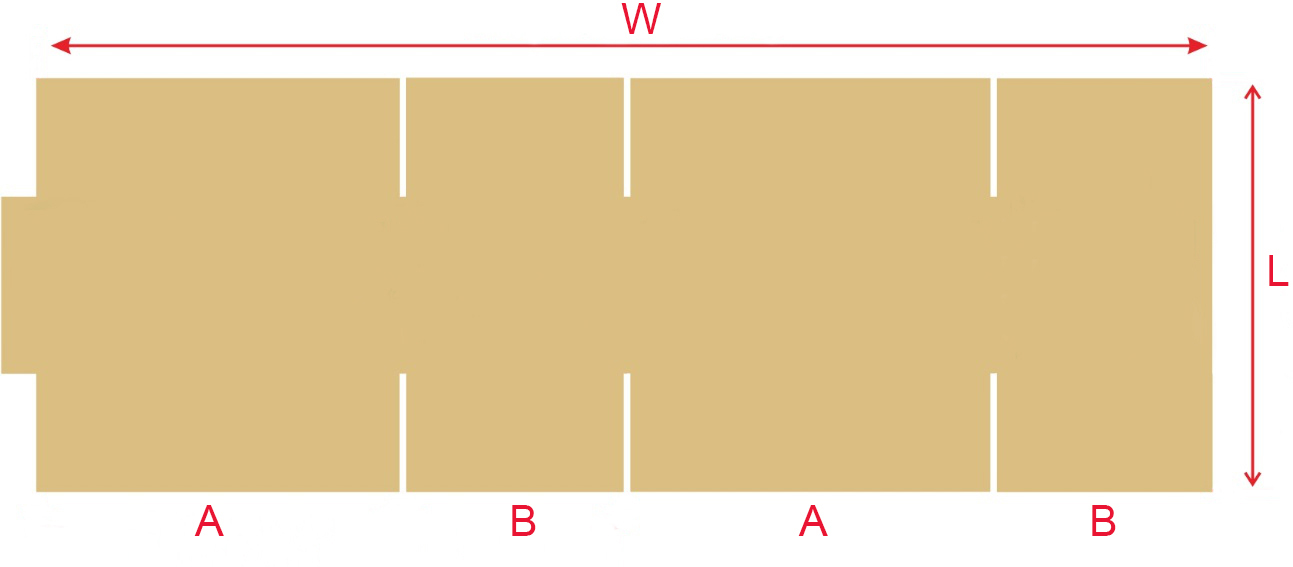

Item |
Max |
Min |
|
|
Folder stitcher |
W |
2600 |
800 |
|
L |
1030 |
300 |
|
|
A |
750 |
200 |
|
|
B |
550 |
160 |
|
|
Model |
TC-2600 |
|
Max corrugated sheet size |
2600*1030mm |
|
Min corrugated sheet size |
800*300mm |
|
Available corrugated sheet |
3 layer, 5 layer, 7 layer |
|
Max stitching speed |
90 pcs/min (3 wire stitching) |
|
Max gluing speed |
90 pcs/min |
|
Stitching head speed |
1000 stitches/min |
|
Min stitching distance |
20mm |
|
Slanting of the stitch |
45o |
|
Total power |
50kw |
|
Voltage |
380V, 50HZ, 3phase |
|
Dimension |
15000*3700*2100mm |
|
Weight |
15.5tons |
